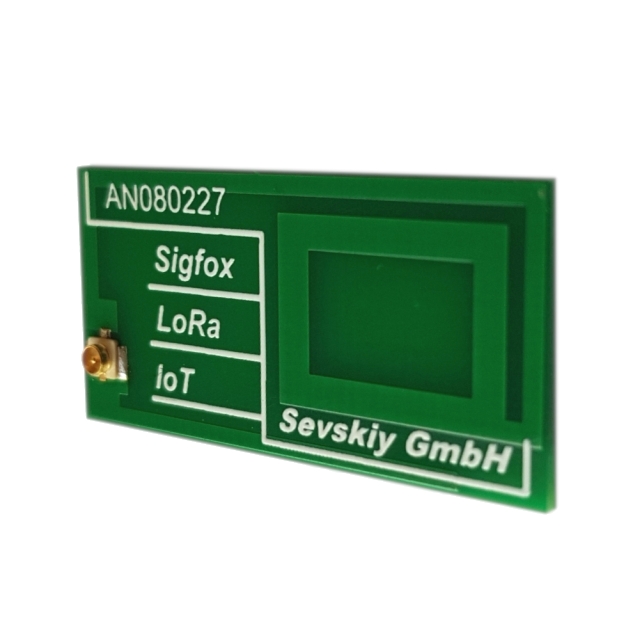

| Part number: | AN080227-01H |
| Description: | RF ANT 433/868/5800MHZ PCB U.FL. |
| Manufacturer | Sevskiy GmbH |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sevskiy GmbH" |
| Mounting Type | Adhesive, Bracket |
| Frequency Range | 738MHz ~ 928MHz, 4.4GHz ~ 5GHz, 5.725GHz ~ 6GHz |
| Applications | 5G, IoT, ISM, LP-WAN, RFID, Smart Meters |
| Gain | 0.2dBi, 1.35dBi, 2.3dBi |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Number of Bands | 3 |
| VSWR | 2.1, 3.57, 3.57 |
| Antenna Type | PCB Trace |
| Height (Max) | 0.039" (1.00mm) |
| Return Loss | -5dB, -5dB, -9dB |
| Frequency Group | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 833MHz, 4.7GHz, 5.86GHz |
| RF Family/Standard | General ISM |
| Power - Max | 10 W |
|
