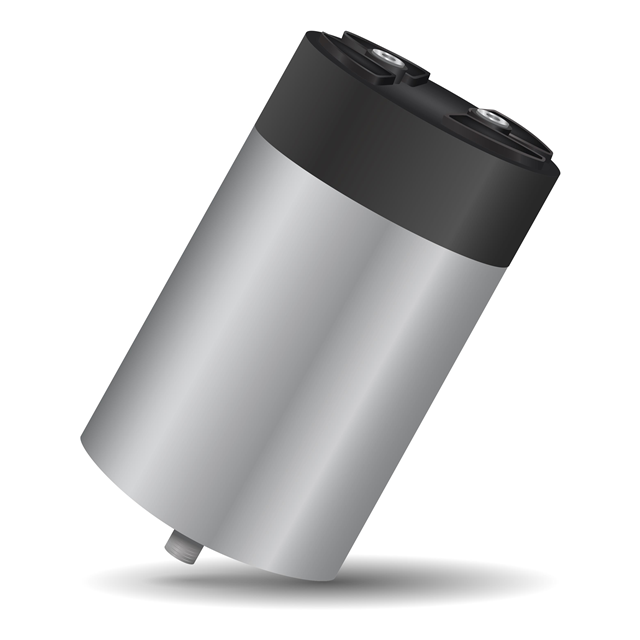

| Part number: | FFLR6Z1656KJE |
| Description: | CAP FILM 165UF, 3800VDC |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Bulk |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±10% |
| Package / Case | Radial, Can |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 95°C |
| Applications | DC Link, DC Filtering |
| Lead Spacing | 1.969" (50.00mm) |
| Termination | Threaded, Male |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 3800V (3.8kV) |
| Height - Seated (Max) | 13.465" (342.00mm) |
| Capacitance | 165 µF |
| ESR (Equivalent Series Resistance) | 1.6 mOhms |
| Size / Dimension | 4.567" Dia (116.00mm) |
|
