| Part number: | A759KC276M1JAAE054 |

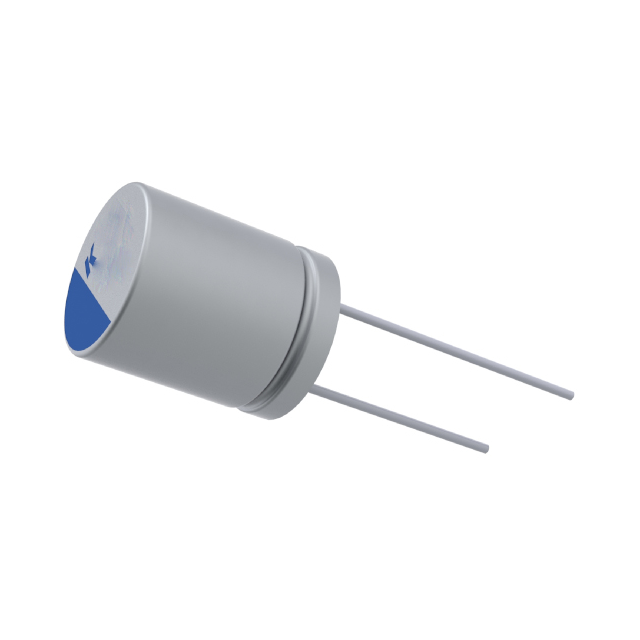

| Description: | CAP ALUM POLY 27UF 20% 63V T/H |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| ESR (Equivalent Series Resistance) | 54mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Capacitance | 27 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ Low Frequency | 99.9 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.998 A @ 100 kHz |
|
