| Part number: | A750MV477M1VAAE018 |

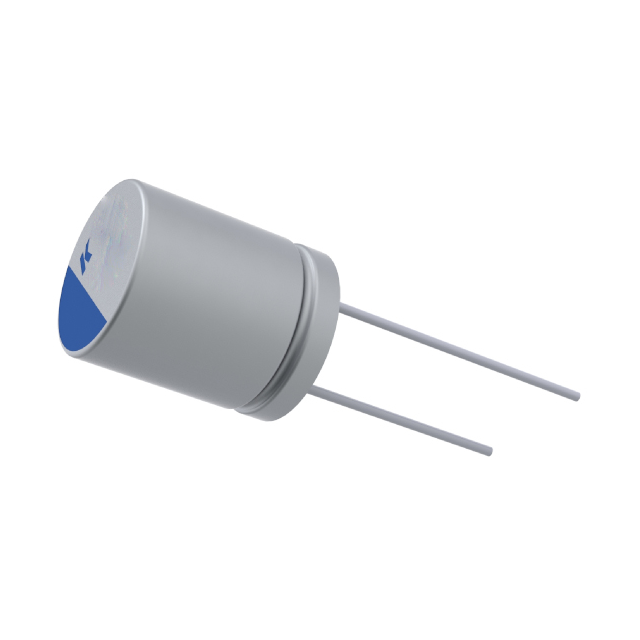

| Description: | CAP ALUM POLY 470UF 20% 35V T/H |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Bulk |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Capacitance | 470 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 225 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.5 A @ 100 kHz |
|
