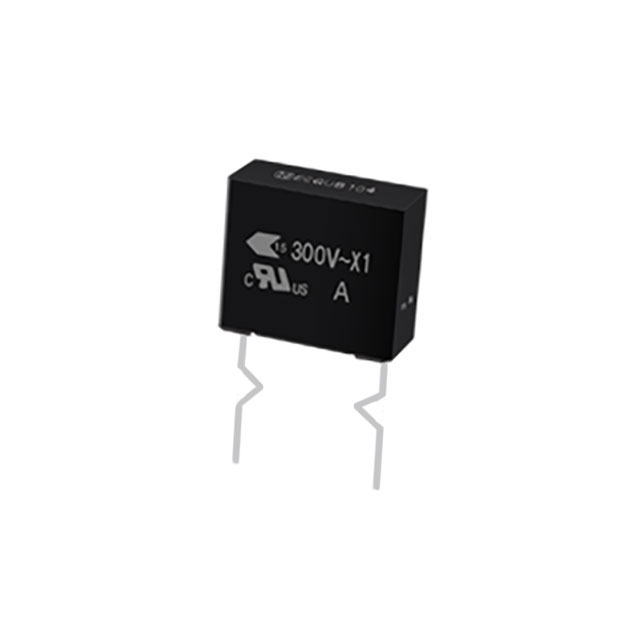

| Part number: | ECQ-UBAF182VB |
| Description: | CAP FILM 0.0018UF 10% 300VAC RAD |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 110°C |
| Applications | EMI, RFI Suppression |
| Lead Spacing | 0.591" (15.00mm) |
| Termination | PC Pins |
| Ratings | X1, Y2 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 300V |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Capacitance | 1800 pF |
| Size / Dimension | 0.602" L x 0.197" W (15.30mm x 5.00mm) |
|
