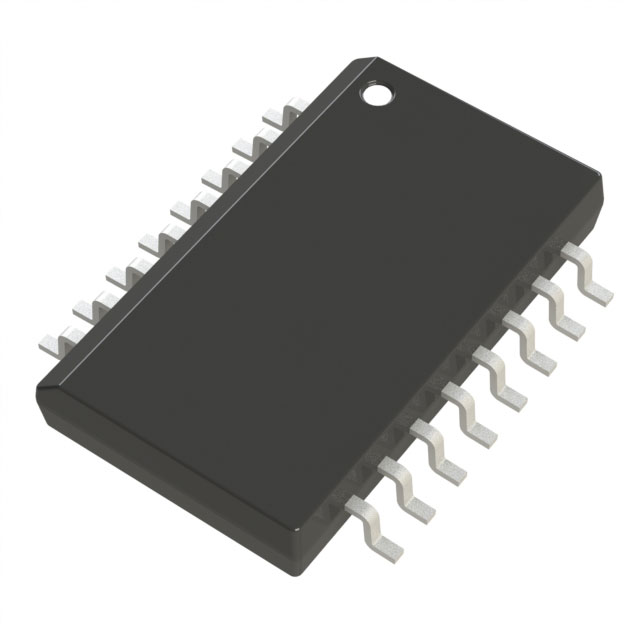

| Part number: | ADUM4221-1BRIZ |
| Description: | ISO 1/2 BRIDGE DRV W PWM UVLO 7. |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 37 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 2.5V ~ 6.5V |
| Input Type | Inverting, Non-Inverting |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 25ns, 25ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | 1.5V, 3.5V |
| Current - Peak Output (Source, Sink) | 4A, 6A |
| DigiKey Programmable | Not Verified |
|
