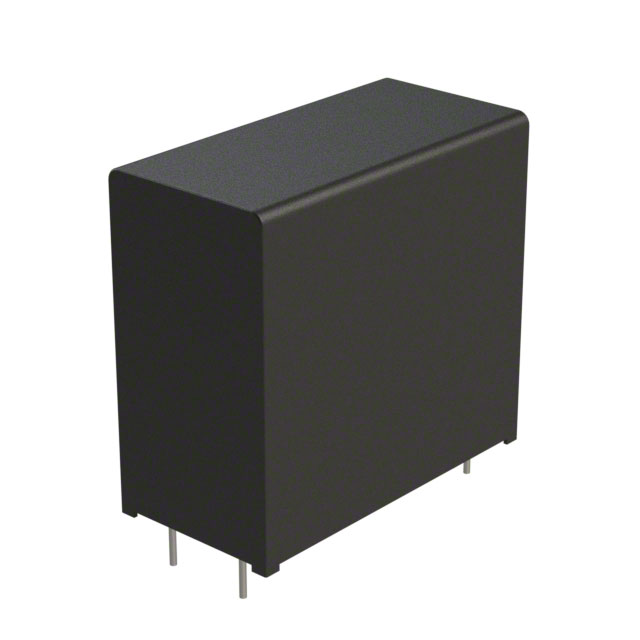

| Part number: | MKP1848H62570JP4 |
| Description: | CAP FILM 25UF 5% 700VDC RADIAL |
| Manufacturer | Vishay BC Components |
| Encapsulation | Tray |
| Quantity | 63 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay BC Components" |
| Tolerance | ±5% |
| Features | 85C/85% Humidity; Low ESR, Low ESL |
| Package / Case | Radial - 4 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 1.476" (37.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 700V |
| Height - Seated (Max) | 1.791" (45.50mm) |
| Capacitance | 25 µF |
| ESR (Equivalent Series Resistance) | 3.3 mOhms |
| Size / Dimension | 1.654" L x 1.181" W (42.00mm x 30.00mm) |
|
