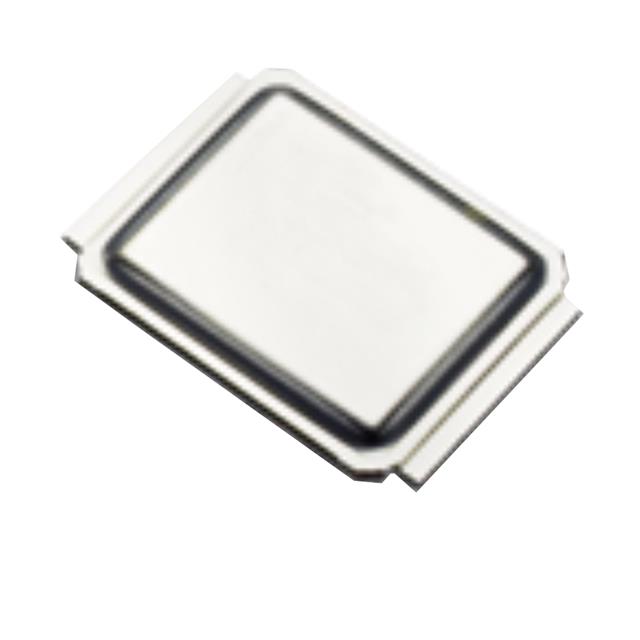

| Part number: | IRL6283MTRPBF |
| Description: | DIRECTFET N-CHANNEL POWER MOSFET |
| Manufacturer | International Rectifier |
| Encapsulation | Bulk |
| Quantity | 302 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "International Rectifier" |
| Package / Case | DirectFET™ Isometric MD |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 38A (Ta), 211A (Tc) |
| Rds On (Max) @ Id, Vgs | 0.75mOhm @ 50A, 10V |
| Power Dissipation (Max) | 2.1W (Ta), 63W (Tc) |
| Vgs(th) (Max) @ Id | 1.1V @ 100µA |
| Supplier Device Package | DIRECTFET™ MD |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 158 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 8292 pF @ 10 V |
|
