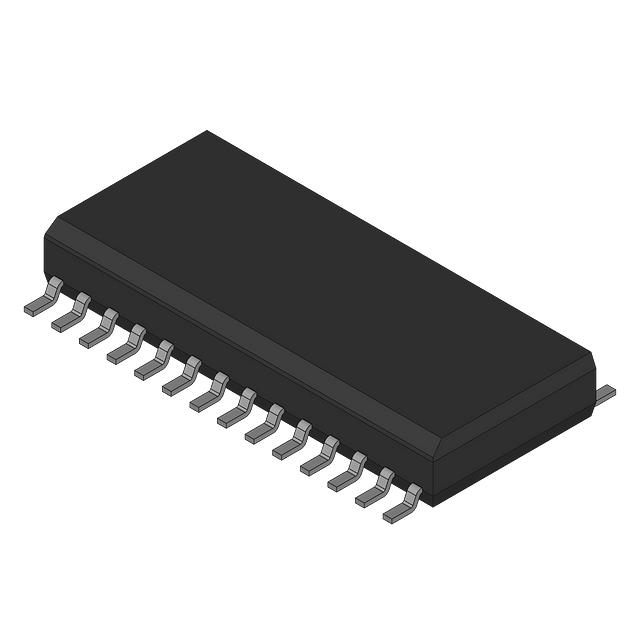

| Part number: | ISL6551IB-T |
| Description: | ZVS FULL BRIDGE PWM CONTROLLER |
| Manufacturer | Intersil |
| Encapsulation | Bulk |
| Quantity | 111 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Intersil" |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 50kHz ~ 500kHz |
| Topology | Full-Bridge |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 13.2V |
| Supplier Device Package | 28-SOIC |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Dead Time Control, Enable, Soft Start |
| Output Phases | 1 |
| Duty Cycle (Max) | 50% |
| Clock Sync | No |
| Number of Outputs | 1 |
|
