IRFZ44NSTRRPBF
Part number: IRFZ44NSTRRPBF
Description: HEXFET POWER MOSFET
Manufacturer International Rectifier
Encapsulation Bulk
Quantity 450
RoHS 1
TYPEDESCRIPTION
Mfr"International Rectifier"

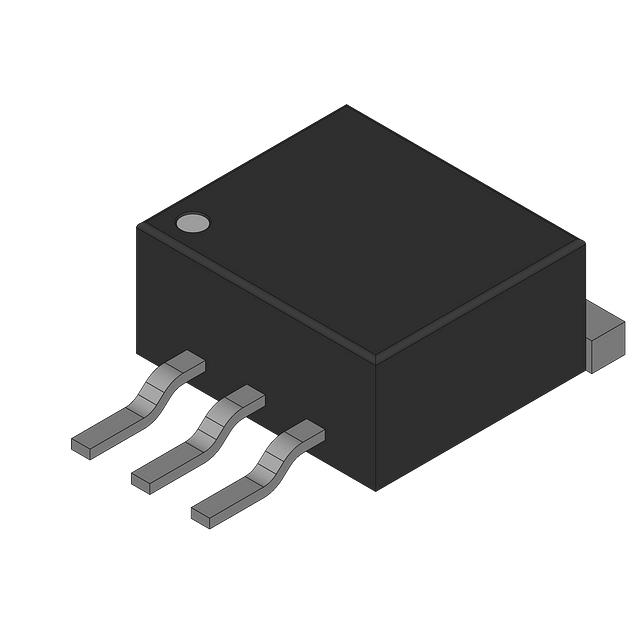

Package / Case TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Operating Temperature -55°C ~ 175°C (TJ)
Technology MOSFET (Metal Oxide)
FET Type N-Channel
Current - Continuous Drain (Id) @ 25°C 49A (Tc)
Rds On (Max) @ Id, Vgs 17.5mOhm @ 25A, 10V
Power Dissipation (Max) 3.8W (Ta), 94W (Tc)
Vgs(th) (Max) @ Id 4V @ 250µA
Supplier Device Package D2PAK
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs (Max) ±20V
Drain to Source Voltage (Vdss) 55 V
Gate Charge (Qg) (Max) @ Vgs 63 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds 1470 pF @ 25 V
