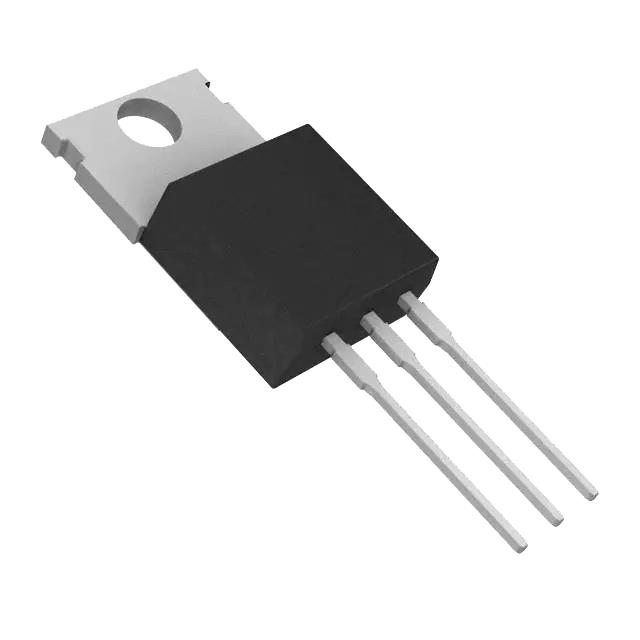

| Part number: | AUIRF3415 |
| Description: | AUTOMOTIVE HEXFET N CHANNEL |
| Manufacturer | International Rectifier |
| Encapsulation | Bulk |
| Quantity | 198 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "International Rectifier" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 43A (Tc) |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 22A, 10V |
| Power Dissipation (Max) | 200W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-220AB |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 200 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2400 pF @ 25 V |
|
