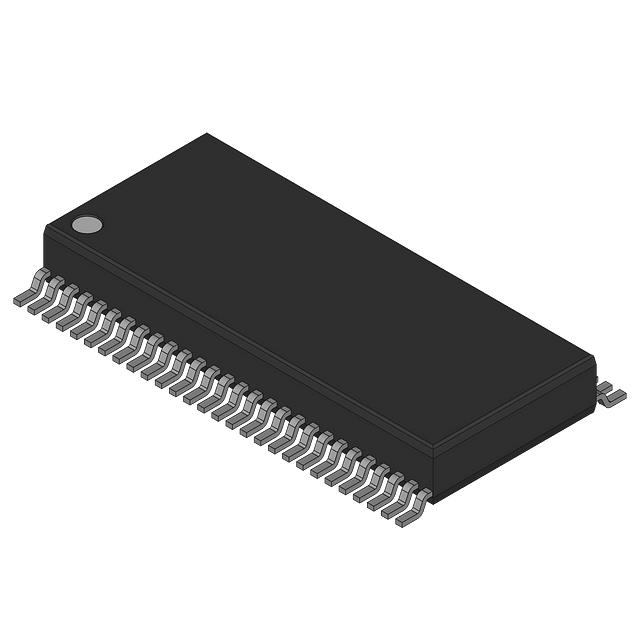

| Part number: | MC07XSF517EK |
| Description: | HIGH-SIDE SWITCH, 18V, TRIPLE 7M |
| Manufacturer | Freescale Semiconductor |
| Encapsulation | Bulk |
| Quantity | 45 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Freescale Semiconductor" |
| Features | Internal PWM |
| Package / Case | 54-SSOP (0.295", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 7mOhm, 17mOhm |
| Input Type | CMOS |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 54-HSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
|
