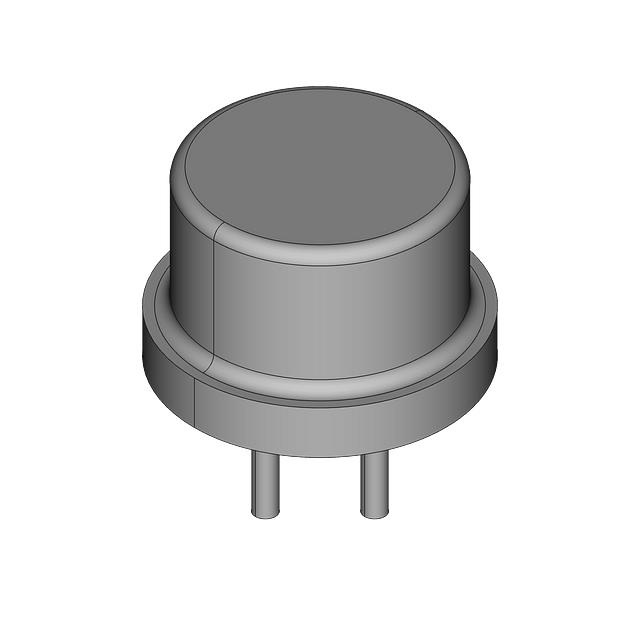

| Part number: | 2N6760TXV |
| Description: | 5.5A, 400V, 1OHM, N-CHANNEL |
| Manufacturer | Harris Corporation |
| Encapsulation | Bulk |
| Quantity | 36 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Harris Corporation" |
| Package / Case | TO-204AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.5A (Tc) |
| Rds On (Max) @ Id, Vgs | 1Ohm @ 3.5A, 10V |
| Power Dissipation (Max) | 75W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | TO-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 400 V |
| Input Capacitance (Ciss) (Max) @ Vds | 800 pF @ 25 V |
|
