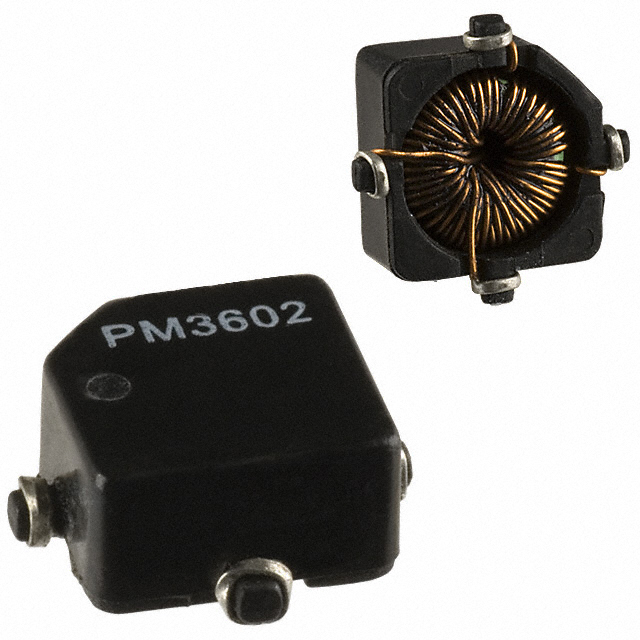

| Part number: | PM3602-15-RC |
| Description: | INDUCT ARRAY 2 COIL 15UH SMD |
| Manufacturer | J.W. Miller / Bourns |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "J.W. Miller / Bourns" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.452" L x 0.354" W (11.48mm x 8.99mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -55°C ~ 125°C |
| Height | 0.225" (5.72mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 60 µH |
| Inductance - Connected In Parallel | 15 µH |
| Current Rating - Parallel | 1.45 A |
| Current Rating - Series | 730 mA |
| DC Resistance (DCR) - Parallel | 63mOhm Max |
| DC Resistance (DCR) - Series | 250mOhm Max |
|
