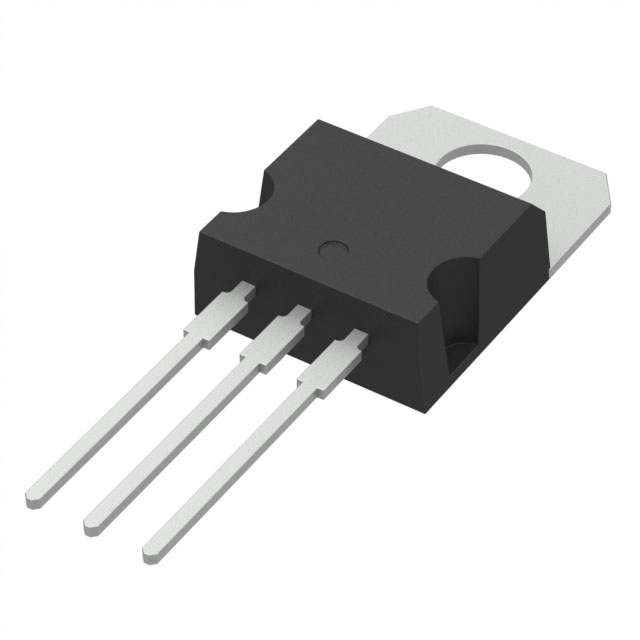

| Part number: | TYN412RG |
| Description: | SCR 400V 12A TO220AB |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 140A, 145A |
| Current - On State (It (AV)) (Max) | 8 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | TO-220 |
| Current - On State (It (RMS)) (Max) | 12 A |
| Voltage - Off State | 400 V |
|
