| Part number: | F340Y238230JFM2B0 |

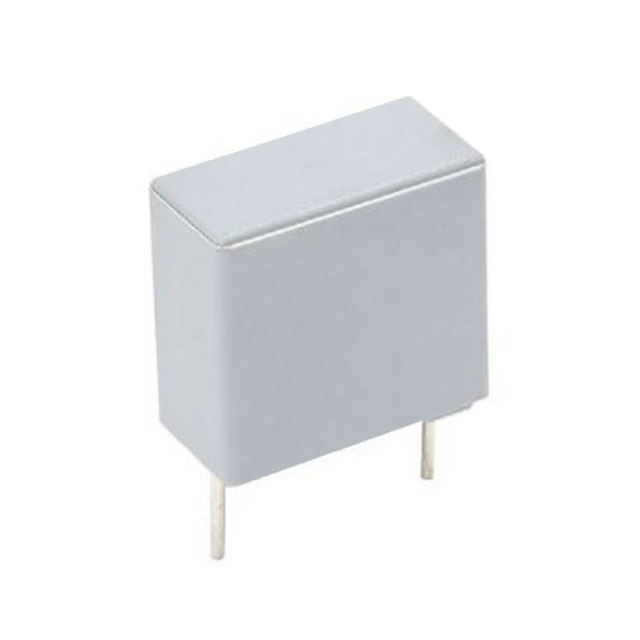

| Description: | CAP FILM 0.082UF 5% 1KVDC RAD |
| Manufacturer | Vishay BC Components |
| Encapsulation | Bulk |
| Quantity | 225 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay BC Components" |
| Tolerance | ±5% |
| Features | 85C/85% Humidity |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive; EMI, RFI Suppression |
| Lead Spacing | 0.591" (15.00mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200, Y2 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 305V |
| Voltage Rating - DC | 1000V (1kV) |
| Height - Seated (Max) | 0.732" (18.60mm) |
| Capacitance | 0.082 µF |
| Size / Dimension | 0.709" L x 0.433" W (18.00mm x 11.00mm) |
|
