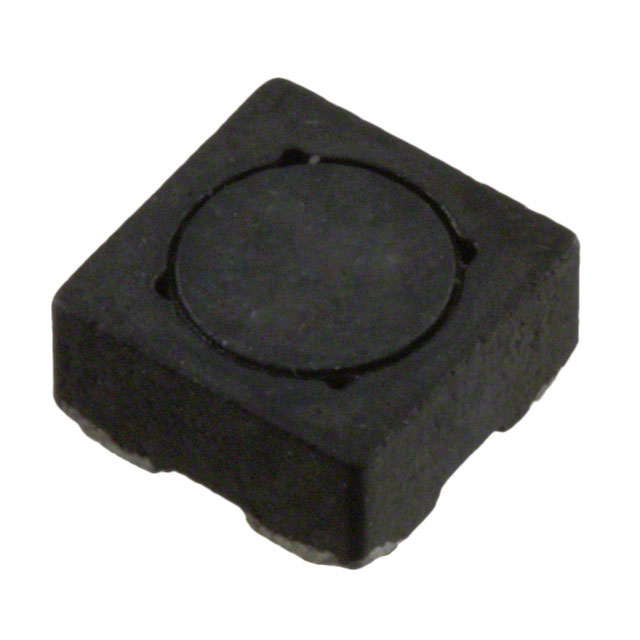

| Part number: | SDQ25-102-R |
| Description: | INDUCT ARRAY 2 COIL 1MH SMD |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2900 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Height | 0.098" (2.50mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 4 mH |
| Inductance - Connected In Parallel | 1 mH |
| Current Rating - Parallel | 160 mA |
| Current Rating - Series | 80 mA |
| Current Saturation - Parallel | 127 mA |
| Current Saturation - Series | 63 mA |
| DC Resistance (DCR) - Parallel | 9.82Ohm |
| DC Resistance (DCR) - Series | 39.26Ohm |
|
