| Part number: | A41-80-512 |

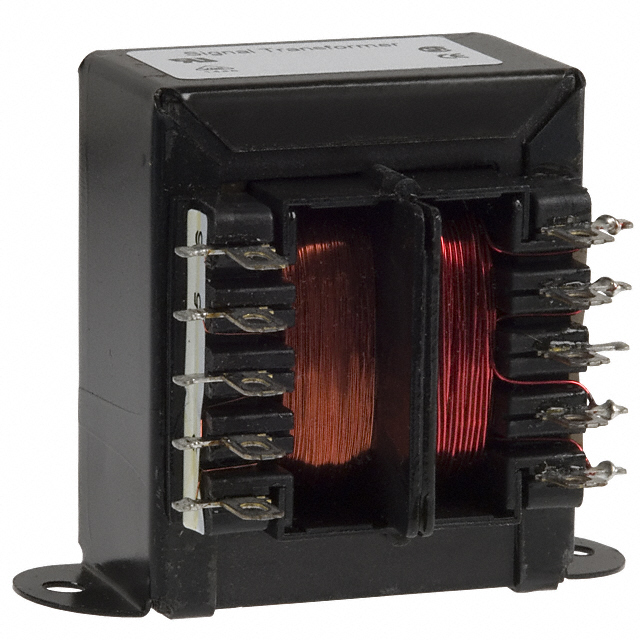

| Description: | PWR XFMR LAMINATED 80VA CHAS MT |
| Manufacturer | Signal Transformer |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Signal Transformer" |
| Size / Dimension | 63.50mm L x 64.30mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 2.8 lbs (1.3 kg) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 80VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 3.5A, Series 600mA |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 76.20mm |
| Voltage - Secondary (Full Load) | Parallel 5V, Series 12V |
| Center Tap | Yes |
|
