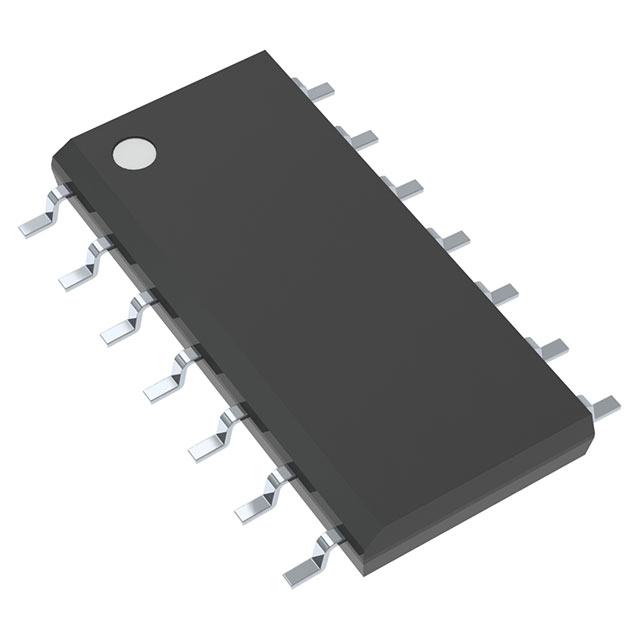

| Part number: | MM74HC14M |
| Description: | IC INVERT SCHMITT 6CH 1IN 14SOIC |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 55 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Features | Schmitt Trigger |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | Inverter |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Number of Inputs | 1 |
| Supplier Device Package | 14-SOIC |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Input Logic Level - Low | 0.3V ~ 1.2V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Number of Circuits | 6 |
| Current - Quiescent (Max) | 2 µA |
|
