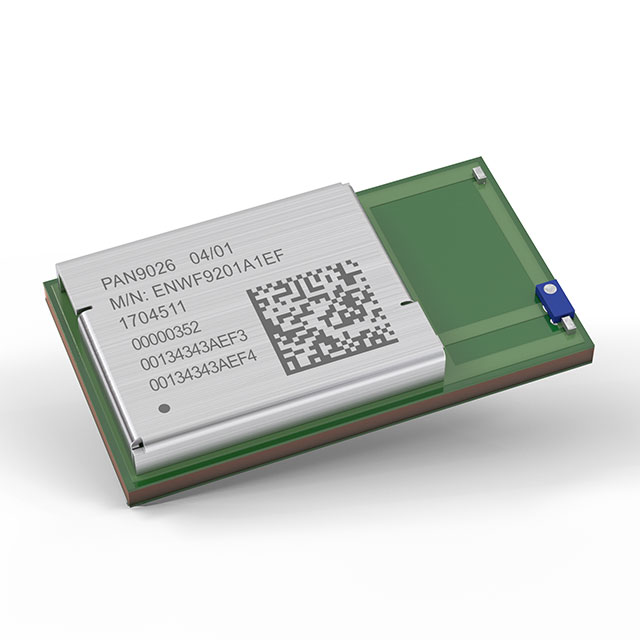

| Part number: | ENW-F9209A1EF |
| Description: | RF TXRX MOD BLUETOOTH CHIP SMD |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Package / Case | 51-SMD Module |
| Sensitivity | -98dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.925GHz |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Voltage - Supply | 1.8V ~ 3.3V |
| Power - Output | 16dBm |
| Data Rate | 150Mbps |
| Protocol | 802.11a/b/g/n, Bluetooth v5.0 |
| Current - Receiving | 65mA ~ 110mA |
| Current - Transmitting | 25mA ~ 55mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | 8W8977, PAN9026 |
| Modulation | CCK, DSSS, OFDM |
| RF Family/Standard | Bluetooth, WiFi |
| Serial Interfaces | JTAG, SDIO, SPI, UART |
| DigiKey Programmable | Not Verified |
|
