| Part number: | C44USGT6145M82K |

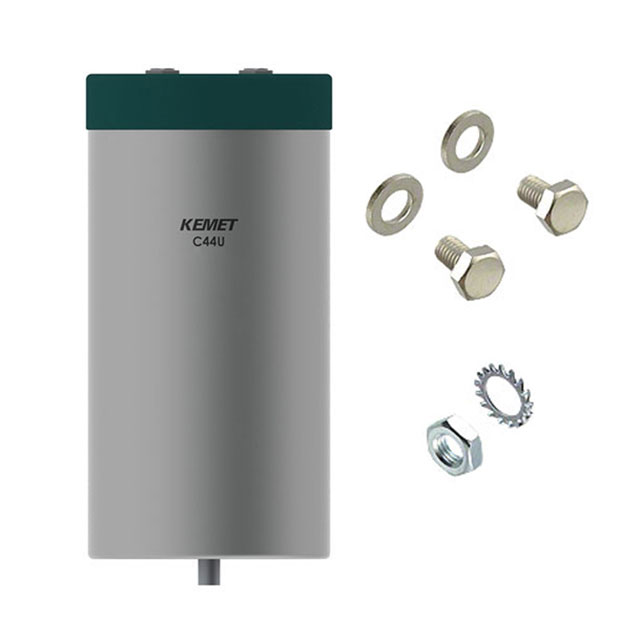

| Description: | CAP FILM 145UF 10% 1.5KVDC RAD |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Bulk |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±10% |
| Package / Case | Radial, Can |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | DC Link, DC Filtering |
| Lead Spacing | 1.260" (32.00mm) |
| Termination | Threaded, Female |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 1500V (1.5kV) |
| Height - Seated (Max) | 4.646" (118.00mm) |
| Capacitance | 145 µF |
| ESR (Equivalent Series Resistance) | 2.9 mOhms |
| Size / Dimension | 3.346" Dia (85.00mm) |
|
