| Part number: | MPMA10019001AT1 |
| Description: | RES NETWORK 2 RES 1K, 9K OHM |
| Manufacturer | Vishay Dale / Thin Film |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay Dale / Thin Film" |
| Resistance (Ohms) | 1k, 9k |
| Tolerance | ±0.1% |
| Power Per Element | 100mW |
| Circuit Type | Voltage Divider |
| Number of Pins | 3 |

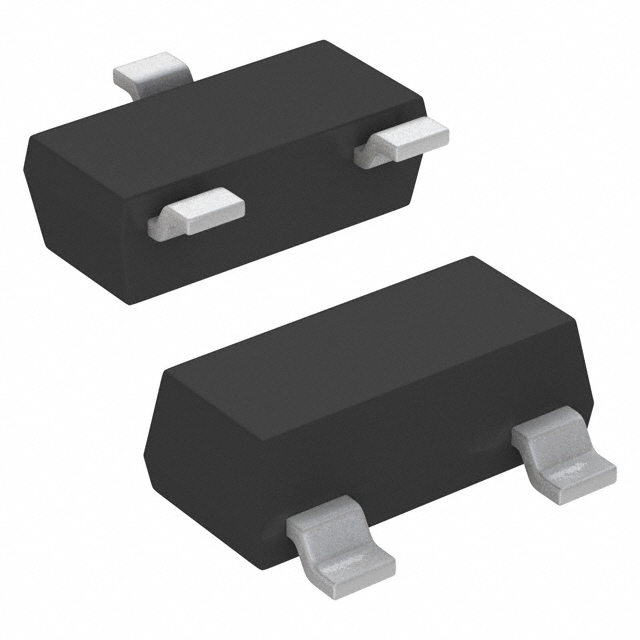

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | ±25ppm/°C |
| Size / Dimension | 0.113" L x 0.051" W (2.86mm x 1.30mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Voltage Divider (TCR Matched) |
| Supplier Device Package | SOT-23 |
| Height - Seated (Max) | 0.044" (1.12mm) |
| Grade | Automotive |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±3ppm/°C |
| Number of Resistors | 2 |
| Qualification | AEC-Q200 |
|
