| Part number: | CFSA69383P1-30NF |

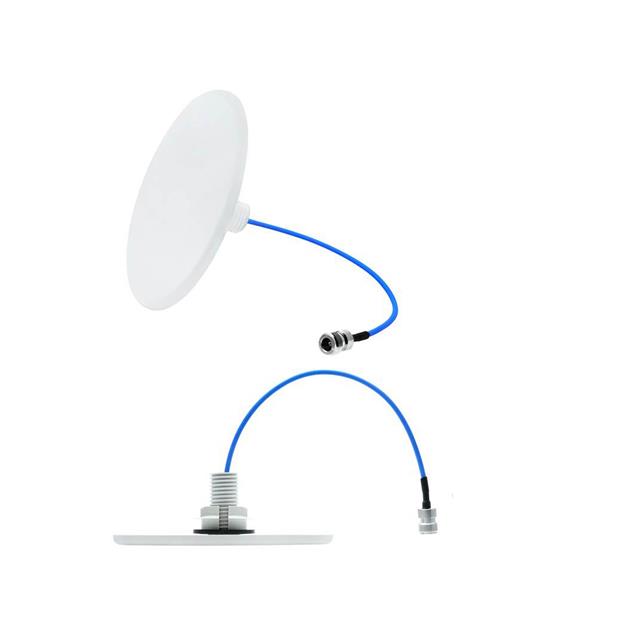

| Description: | ANT OMNI DBAND 30CM NF HOLES |
| Manufacturer | TE Connectivity Laird |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity Laird" |
| Features | Cable - 300mm |
| Mounting Type | Panel Mount |
| Frequency Range | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 4GHz |
| Applications | AWS, GSM, DCS, LTE, UMTS, WiMax™ |
| Gain | 3.2dBi, 2.6dBi, 3.4dBi, 4.2dBi, 4dBi, 4.4dBi, 4.2dBi, 4.3dBi, 5.4dBi, 2.4dBi, 3dBi |
| Termination | N Type Female |
| Number of Bands | 11 |
| VSWR | 1.5, 1.8, 2 |
| Antenna Type | Flat Panel |
| Height (Max) | 0.300" (7.62mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz, 3.9GHz |
| RF Family/Standard | Cellular, WiFi |
| Power - Max | 50 W |
|
