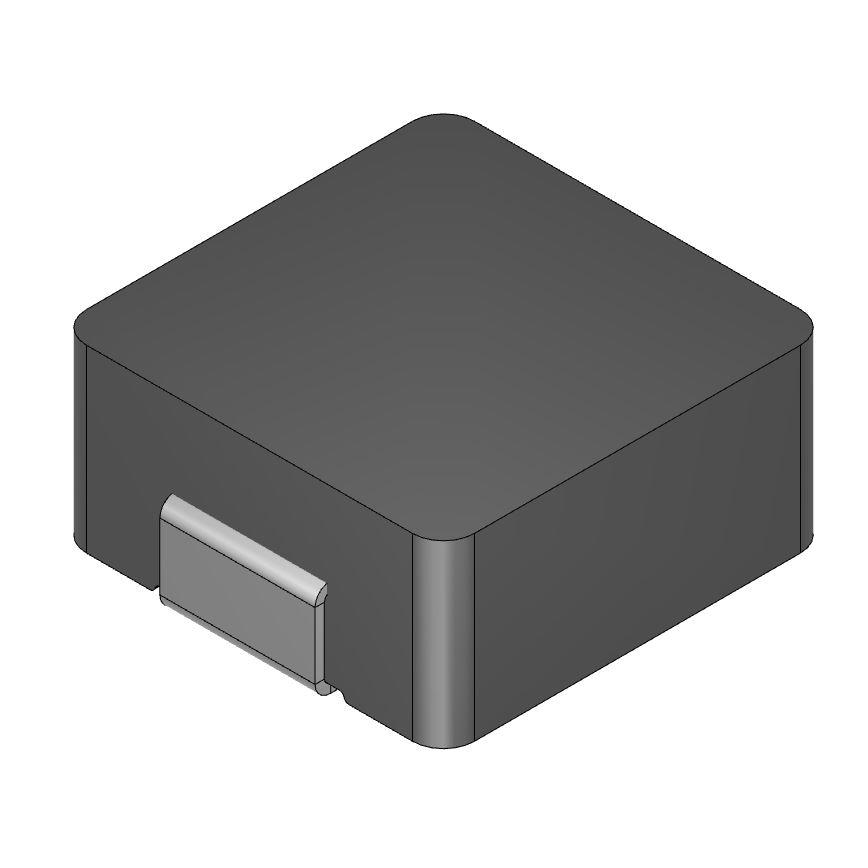

| Part number: | CMLS104T-R15MS |
| Description: | FIXED IND 150NH 52A 0.65MOHM SMD |
| Manufacturer | Delta Electronics / Cyntec |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics / Cyntec" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.439" L x 0.394" W (11.15mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 0.65mOhm Max |
| Current - Saturation (Isat) | 90A |
| Material - Core | Metal |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Inductance | 150 nH |
| Current Rating (Amps) | 52 A |
|
