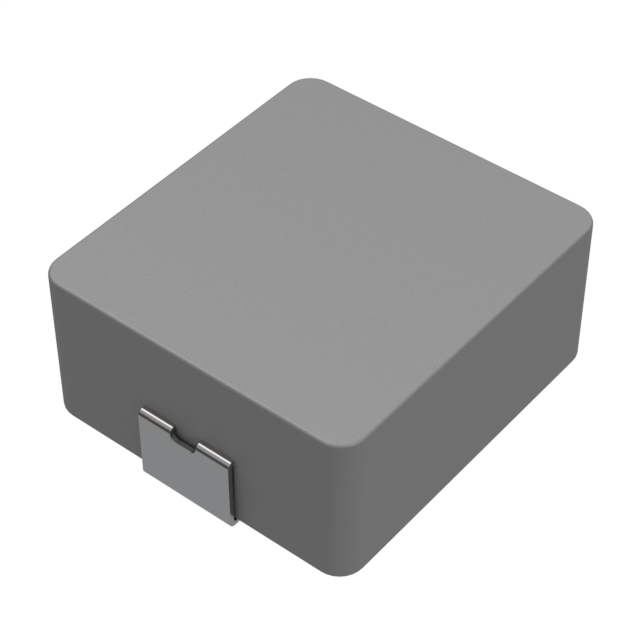

| Part number: | CMLB104T-3R3MS |
| Description: | FIXED IND 3.3UH 10A 12 MOHM SMD |
| Manufacturer | Delta Electronics / Cyntec |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics / Cyntec" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.427" L x 0.394" W (10.85mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 12mOhm Max |
| Current - Saturation (Isat) | 13.5A |
| Material - Core | Metal |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 10 A |
|
