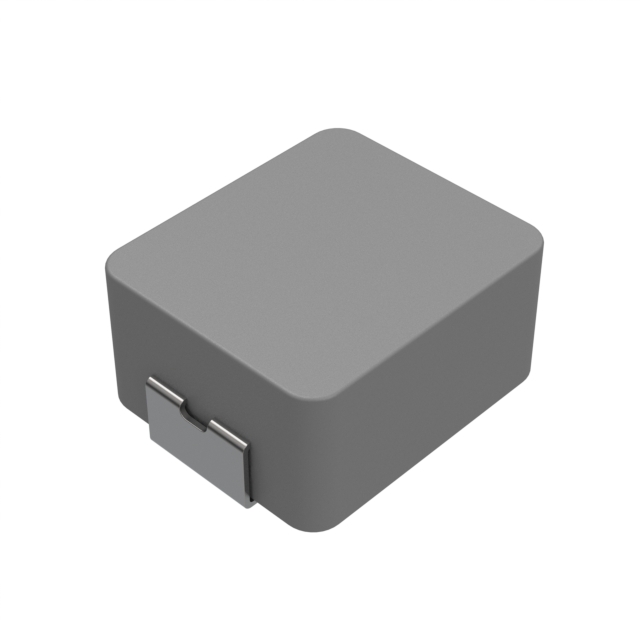

| Part number: | CMLB063T-4R7MS |
| Description: | FIXED IND 4.7UH 6A 33 MOHM SMD |
| Manufacturer | Delta Electronics / Cyntec |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics / Cyntec" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.274" L x 0.260" W (6.95mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 33mOhm Max |
| Current - Saturation (Isat) | 5.5A |
| Material - Core | Metal |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 6 A |
|
