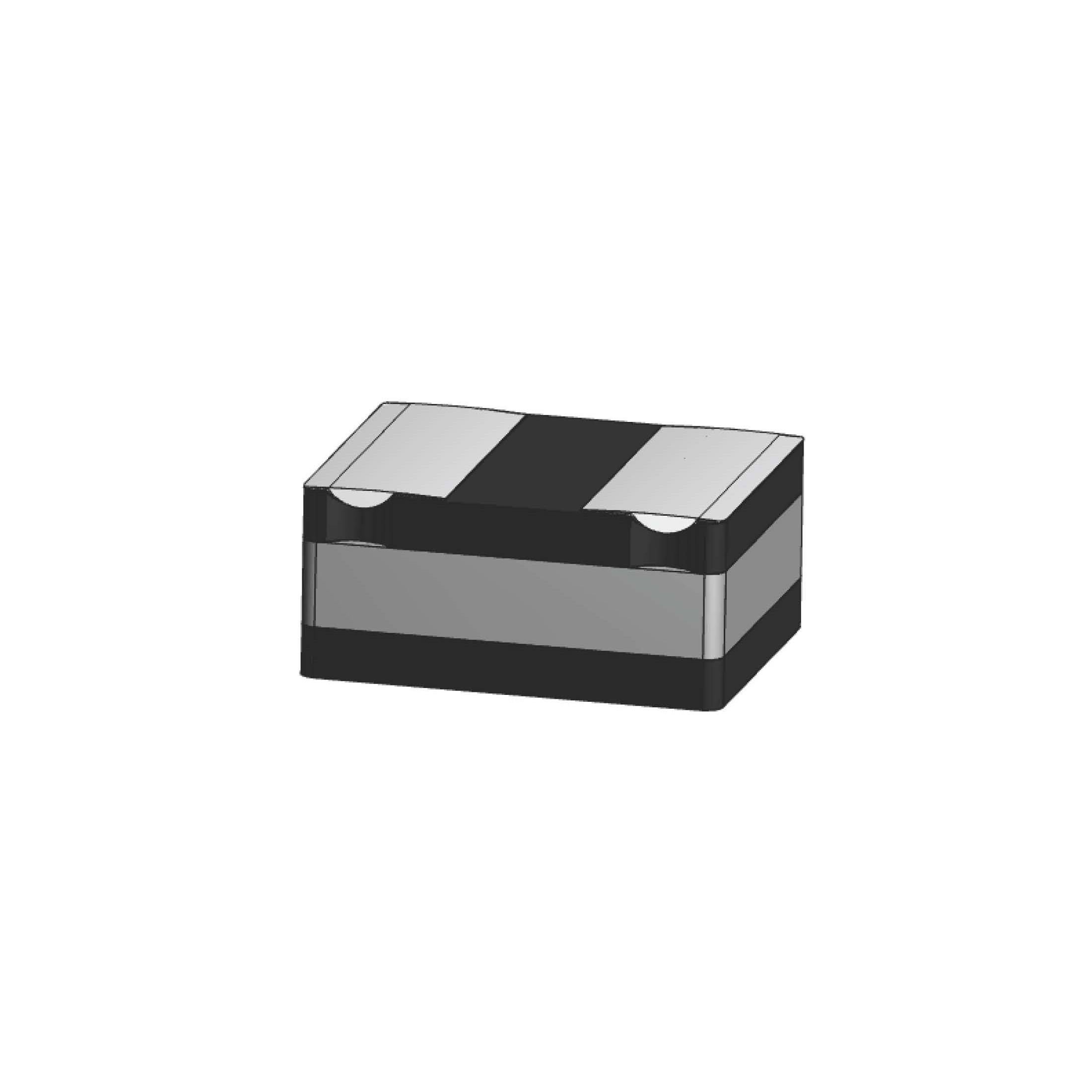

| Part number: | SDEI054T-101MS |
| Description: | FIXED IND 100UH 900MA 589MOHM SM |
| Manufacturer | Delta Electronics / Cyntec |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics / Cyntec" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.193" L x 0.193" W (4.90mm x 4.90mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 589mOhm Max |
| Current - Saturation (Isat) | 900mA |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Inductance | 100 µH |
| Current Rating (Amps) | 900 mA |
|
