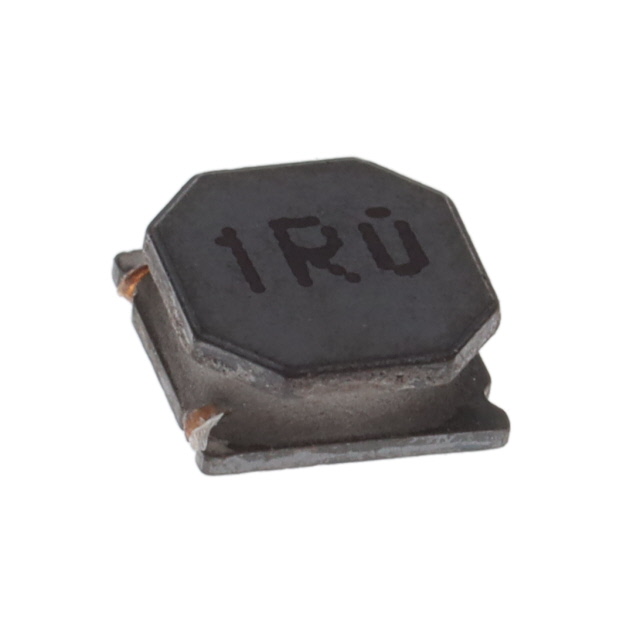

| Part number: | SDER041H-2R2MS |
| Description: | FIXED IND 2.2UH 3.1A 45MOHM SMD |
| Manufacturer | Delta Electronics / Cyntec |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics / Cyntec" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 45mOhm Max |
| Current - Saturation (Isat) | 2.8A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 3.1 A |
|
