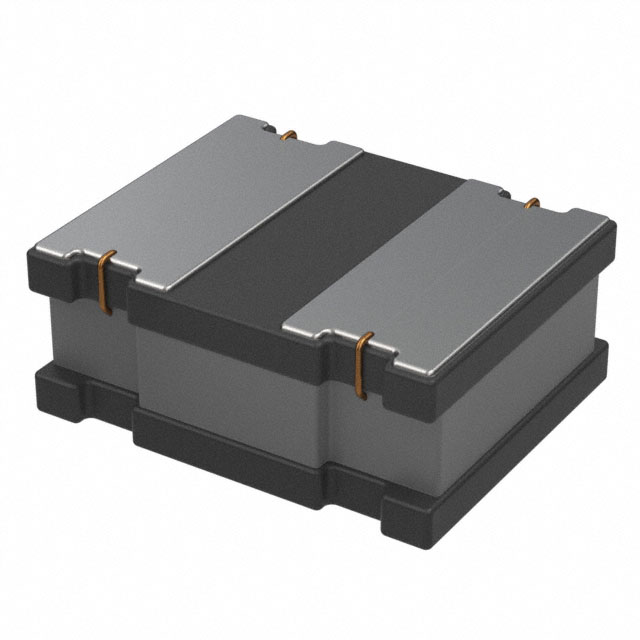

| Part number: | SDEM25201T-4R7MS |
| Description: | FIXED IND 4.7UH 1.45A 0.258OHM |
| Manufacturer | Delta Electronics / Cyntec |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics / Cyntec" |
| Tolerance | ±20% |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 258mOhm Max |
| Current - Saturation (Isat) | 1.53A |
| Material - Core | Metal |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 2520 |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 1.45 A |
|
