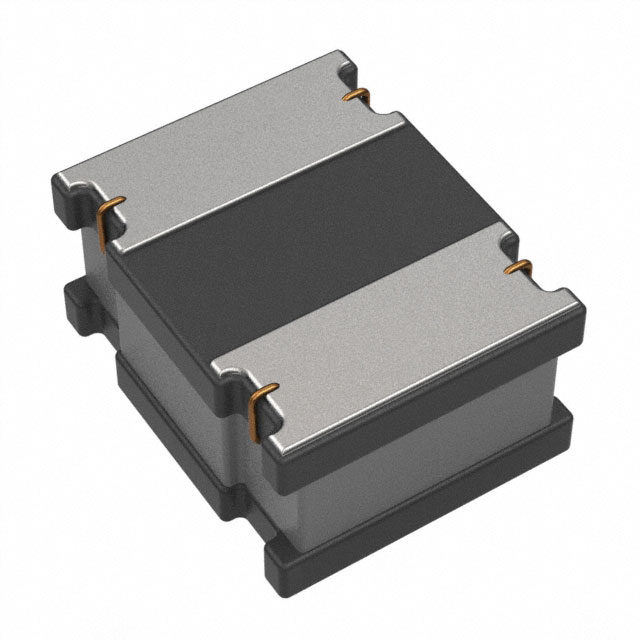

| Part number: | SDEM20161T-R24MS |
| Description: | FIXED IND 240NH 4.5A 0.024OHM SM |
| Manufacturer | Delta Electronics / Cyntec |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics / Cyntec" |
| Tolerance | ±20% |
| Package / Case | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 24mOhm Max |
| Current - Saturation (Isat) | 5.5A |
| Material - Core | Metal |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 2016 |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Inductance | 240 nH |
| Current Rating (Amps) | 4.5 A |
|
