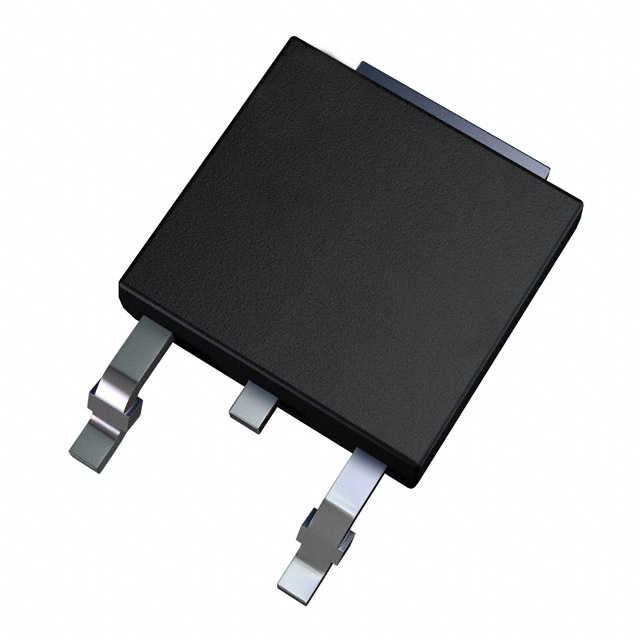

| Part number: | SK012DTP |
| Description: | SCR 1KV 12A TO252 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tube |
| Quantity | 750 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 40 mA |
| Current - Gate Trigger (Igt) (Max) | 20 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 100A, 120A |
| Current - On State (It (AV)) (Max) | 7.6 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 20 µA |
| Supplier Device Package | TO-252 (DPAK) |
| Current - On State (It (RMS)) (Max) | 12 A |
| Voltage - Off State | 1 kV |
|
