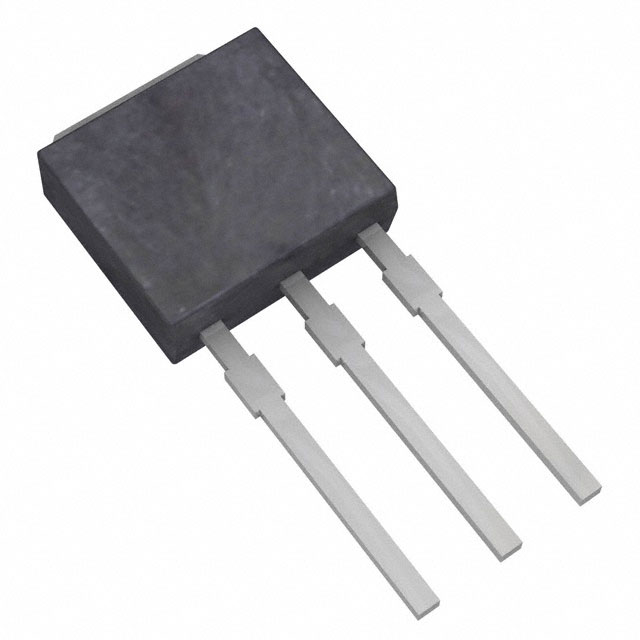

| Part number: | S4004VS1TP |
| Description: | SCR 400V 4A TO251 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tube |
| Quantity | 750 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C |
| Current - Hold (Ih) (Max) | 4 mA |
| Current - Gate Trigger (Igt) (Max) | 50 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 25A, 30A |
| Current - On State (It (AV)) (Max) | 2.5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 2 µA |
| Supplier Device Package | TO-251 (V-Pak/I-Pak) |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 400 V |
|
