| Part number: | Q4N4RP |
| Description: | TRIAC 400V 1A DO214 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |

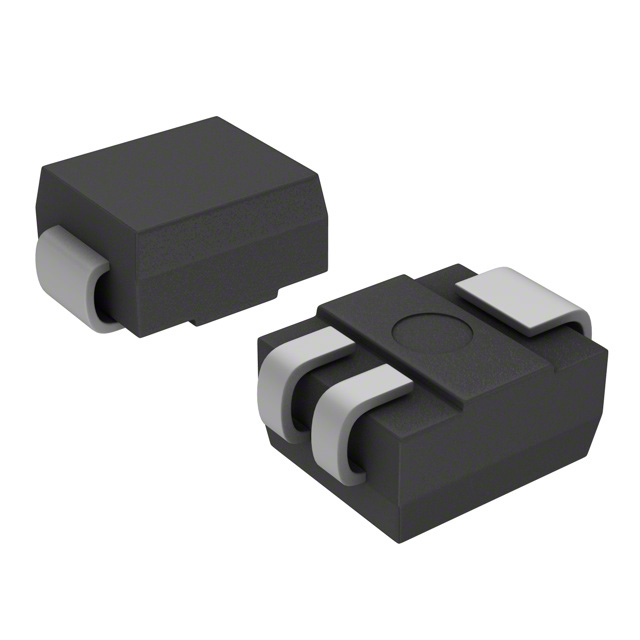

| Package / Case | DO-214AA, SMB (3 Leads), Compak |
| Mounting Type | Surface Mount |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 25 mA |
| Current - Gate Trigger (Igt) (Max) | 25 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16.7A, 20A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | DO-214 (Compak) |
| Current - On State (It (RMS)) (Max) | 1 A |
| Voltage - Off State | 400 V |
|
