| Part number: | L6004F81 |
| Description: | TRIAC SENS GATE 600V 4A TO202 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |

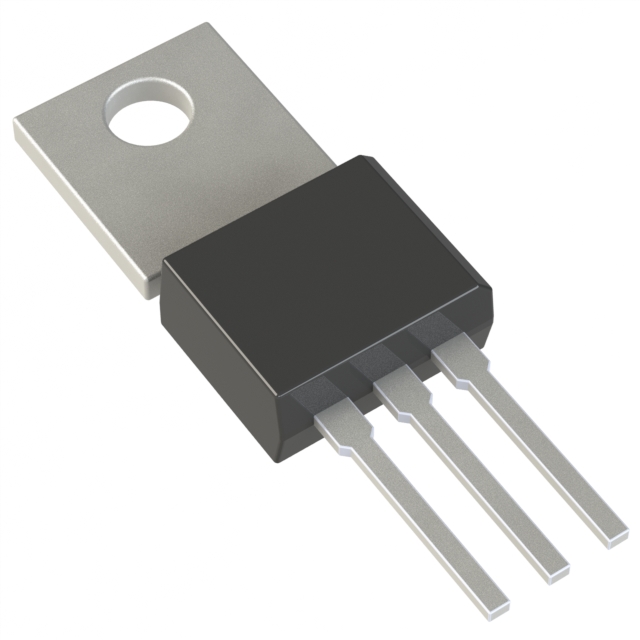

| Package / Case | TO-202 Long Tab |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Current - Hold (Ih) (Max) | 15 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 33A, 40A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Supplier Device Package | TO-202 |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 600 V |
|
