| Part number: | L2004V8TP |
| Description: | TRIAC SENS GATE 200V 4A TO251 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tube |
| Quantity | 750 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |

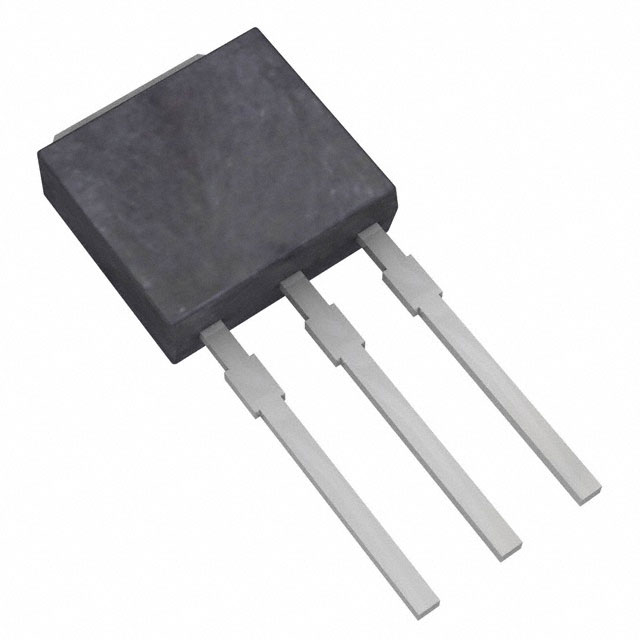

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Current - Hold (Ih) (Max) | 15 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 33A, 40A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-251 (V-Pak/I-Pak) |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 200 V |
|
