| Part number: | K1500E70AP |
| Description: | SIDAC 140-170V 1A TO92 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Box (TB) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |

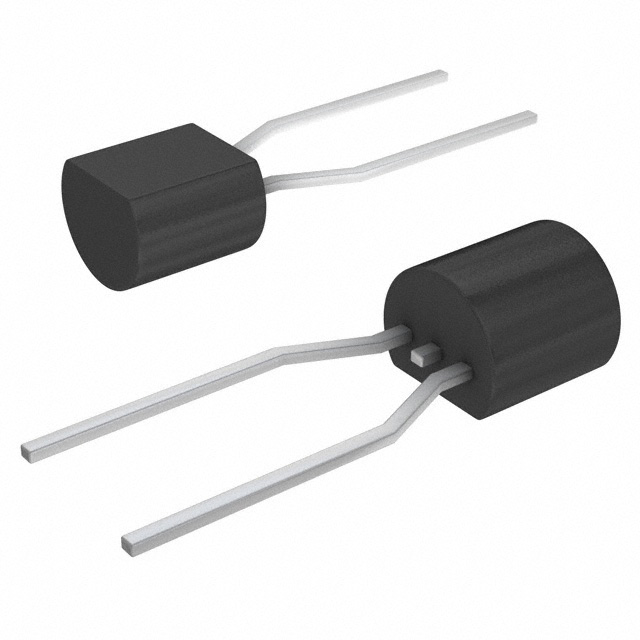

| Package / Case | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 150 mA |
| Voltage - Breakover | 140 ~ 170V |
| Current - Breakover | 10 µA |
| Supplier Device Package | TO-92 |
| Current - Peak Output | 1 A |
|
