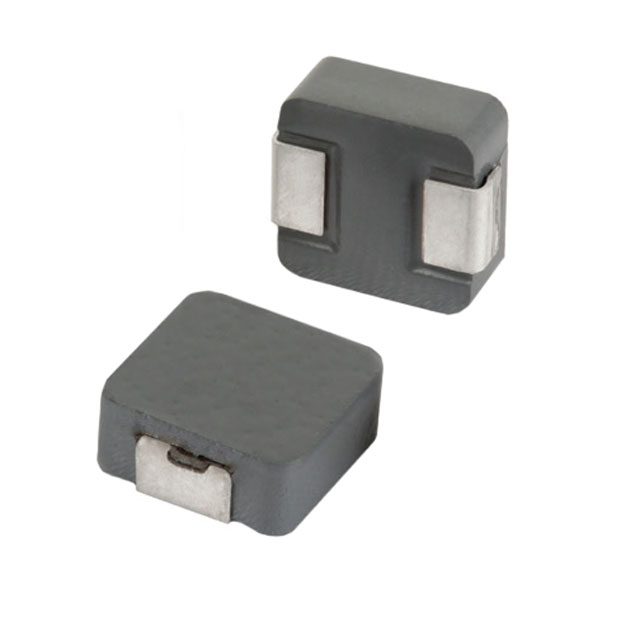

| Part number: | MGV10043R3M-12 |
| Description: | FIXED IND 3.3UH 11A 11.8MOHM SMD |
| Manufacturer | Laird-Signal Integrity Products |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Laird-Signal Integrity Products" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 11.8mOhm Max |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 20A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.173" (4.40mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 11 A |
|
