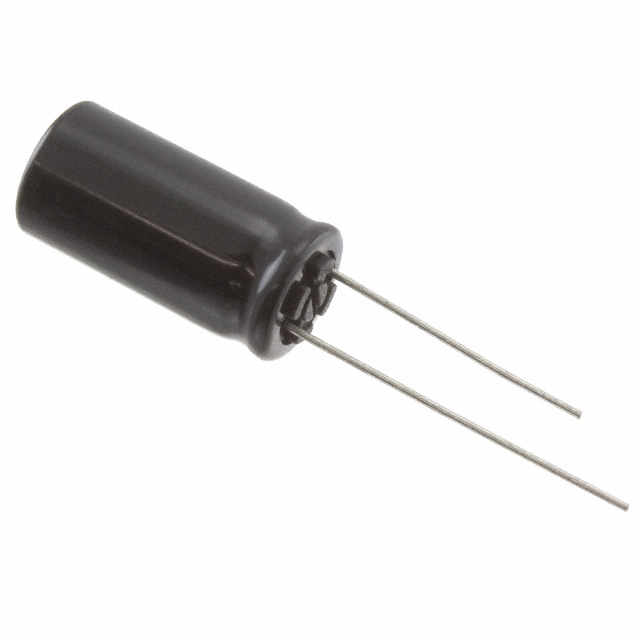

| Part number: | EEU-FS2A221B |
| Description: | CAP ALUM 220UF 20% 100V RADIAL |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Cut Tape (CT) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Capacitance | 220 µF |
| Voltage - Rated | 100 V |
| Impedance | 34 mOhms |
| Ripple Current @ Low Frequency | 1.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
|
