| Part number: | MGV0605R22M-10 |

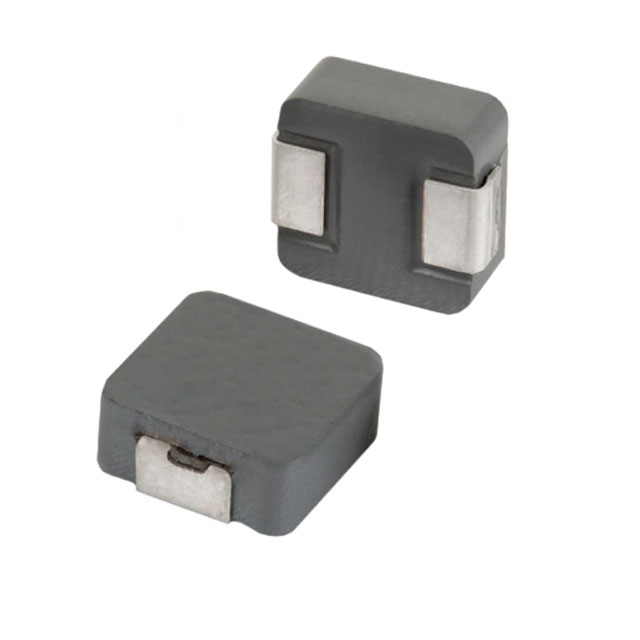

| Description: | FIXED IND 220NH 25A 1.9MOHM SMD |
| Manufacturer | Laird-Signal Integrity Products |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 800 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Laird-Signal Integrity Products" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.287" L x 0.264" W (7.30mm x 6.70mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 1.9mOhm Max |
| Current - Saturation (Isat) | 35A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Inductance | 220 nH |
| Current Rating (Amps) | 25 A |
|
