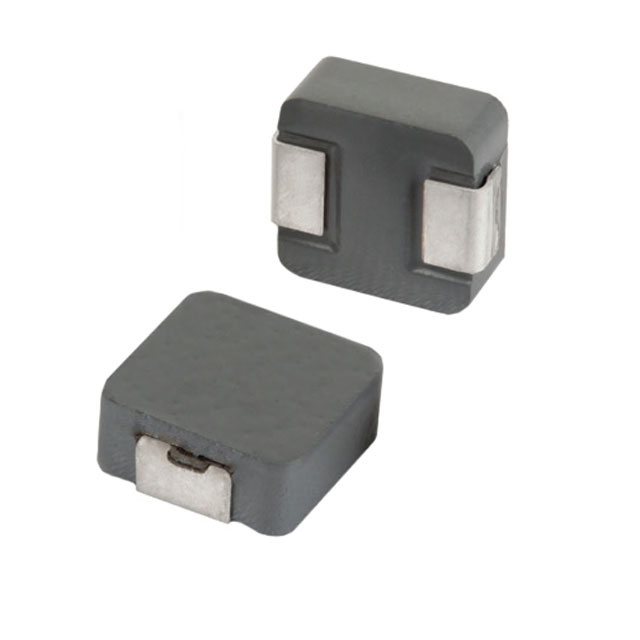

| Part number: | MGV05121R2M-10 |
| Description: | FIXED IND 1.2UH 4.5A 40MOHM SMD |
| Manufacturer | Laird-Signal Integrity Products |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Laird-Signal Integrity Products" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 40mOhm Max |
| Current - Saturation (Isat) | 5.5A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Inductance | 1.2 µH |
| Current Rating (Amps) | 4.5 A |
|
