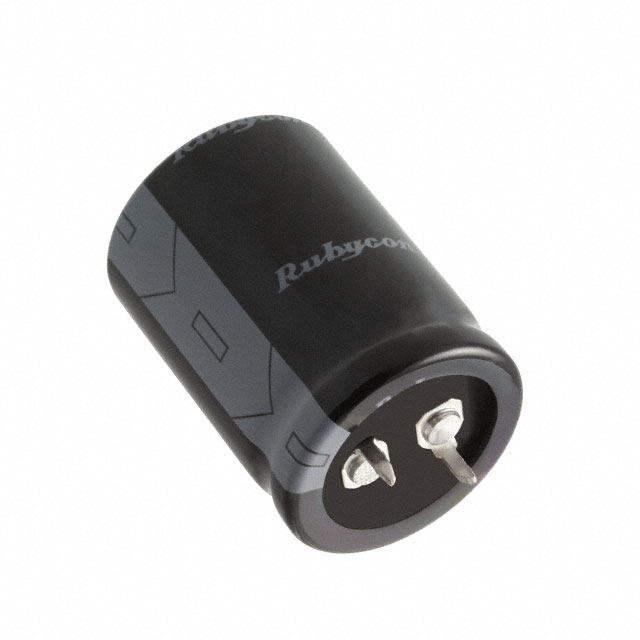

| Part number: | 500MXK680MEFCSN35X55 |
| Description: | CAP ALUM 680UF 20% 500V SNAP |
| Manufacturer | Rubycon |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rubycon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Height - Seated (Max) | 2.244" (57.00mm) |
| Capacitance | 680 µF |
| Voltage - Rated | 500 V |
| Ripple Current @ Low Frequency | 2.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.584 A @ 10 kHz |
|
