| Part number: | 475MXK120MEFCSN22X30 |

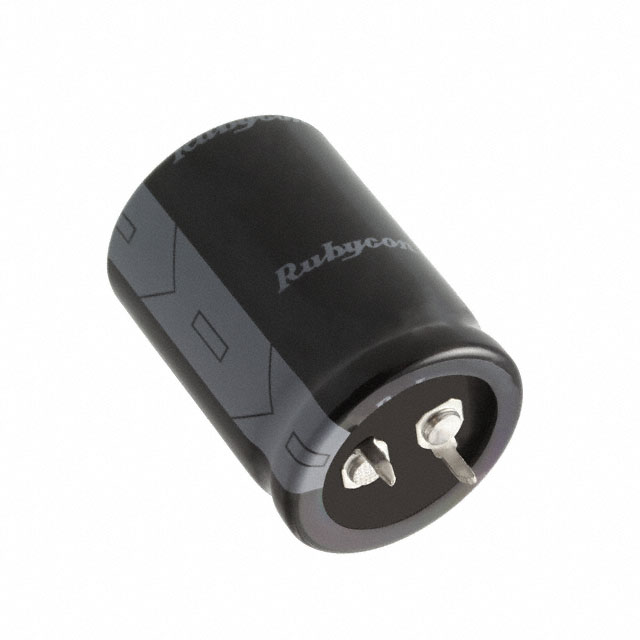

| Description: | CAP ALUM 120UF 20% 475V SNAP |
| Manufacturer | Rubycon |
| Encapsulation | Bulk |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rubycon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Capacitance | 120 µF |
| Voltage - Rated | 475 V |
| Ripple Current @ Low Frequency | 970 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.358 A @ 10 kHz |
|
