| Part number: | SMDTC02100KA00MP00 |

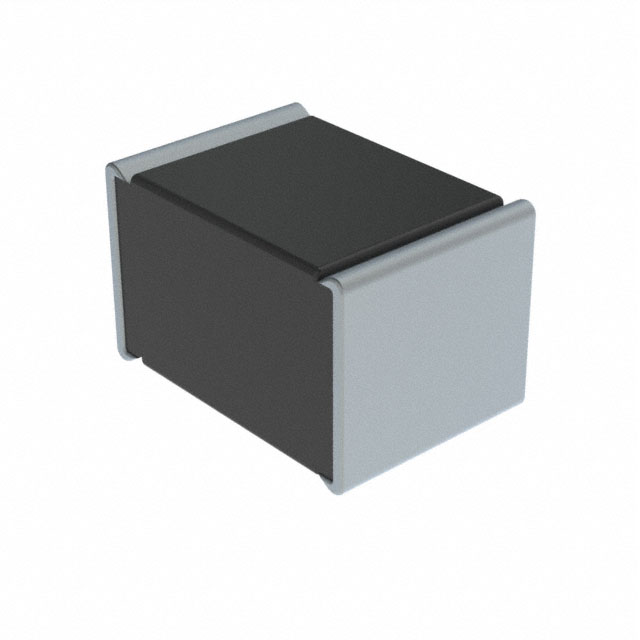

| Description: | CAP FILM 10000PF 20% 40VAC 1812 |
| Manufacturer | WIMA |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 700 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±20% |
| Package / Case | 1812 (4532 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Applications | DC Link, DC Filtering |
| Termination | Solder Pads |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized |
| Voltage Rating - AC | 40V |
| Voltage Rating - DC | 63V |
| Height - Seated (Max) | 0.130" (3.30mm) |
| Capacitance | 10000 pF |
| Size / Dimension | 0.189" L x 0.130" W (4.80mm x 3.30mm) |
|
