| Part number: | MKS4G042206B00KSSD |

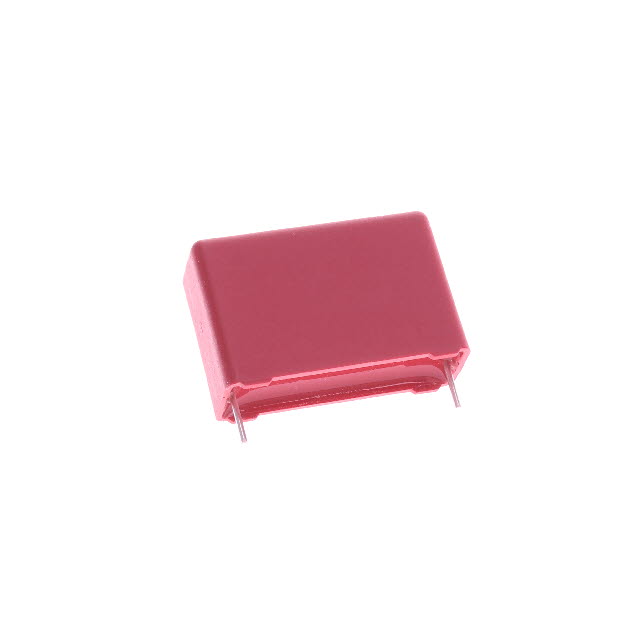

| Description: | CAP FILM 2.2UF 10% 400VDC RADIAL |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 459 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 1.083" (27.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 400V |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Capacitance | 2.2 µF |
| Size / Dimension | 1.240" L x 0.433" W (31.50mm x 11.00mm) |
|
