| Part number: | FKP1R012204B00MSSD |

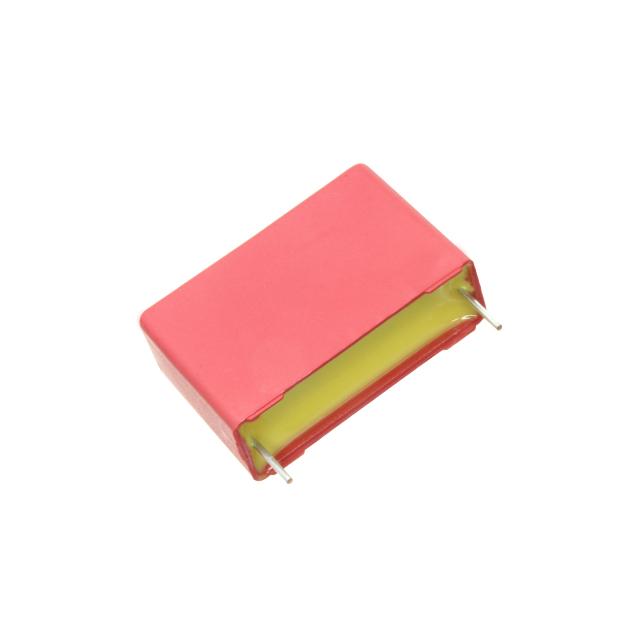

| Description: | CAP FILM 2200PF 20% 1.25KVDC RAD |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 2400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±20% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Lead Spacing | 0.591" (15.00mm) |
| Termination | PC Pins |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Capacitance | 2200 pF |
| Size / Dimension | 0.709" L x 0.197" W (18.00mm x 5.00mm) |
|
