| Part number: | DCP4P042006DD2JSSD |

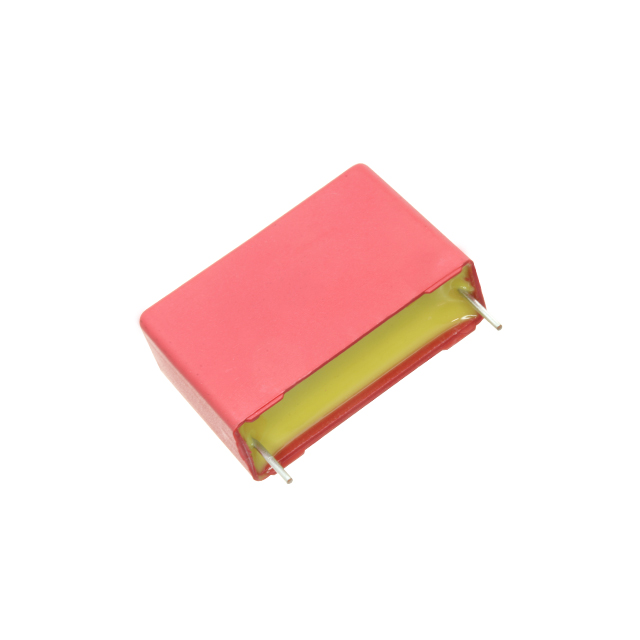

| Description: | CAP FILM 2UF 5% 1.1KVDC RADIAL |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 378 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±5% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 1.083" (27.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 1100V (1.1kV) |
| Height - Seated (Max) | 0.945" (24.00mm) |
| Capacitance | 2 µF |
| ESR (Equivalent Series Resistance) | 36 mOhms |
| Size / Dimension | 1.240" L x 0.512" W (31.50mm x 13.00mm) |
|
