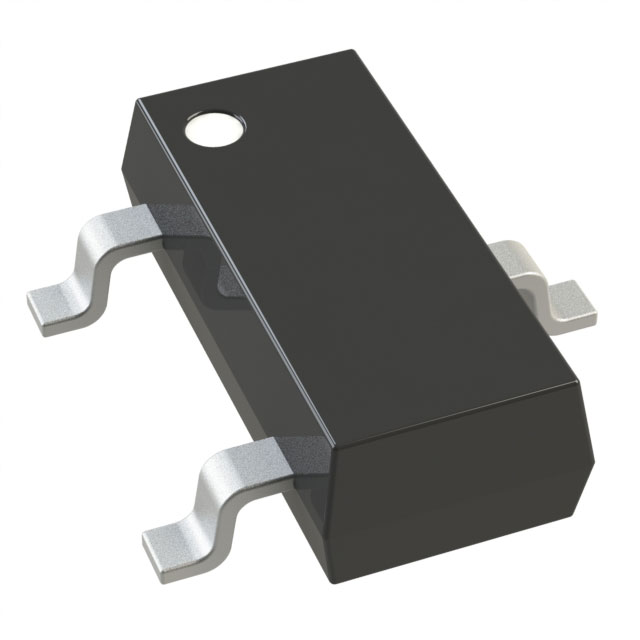

| Part number: | BSS138TA |
| Description: | MOSFET N-CH 50V 200MA SOT23-3 |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Ta) |
| Rds On (Max) @ Id, Vgs | 3.5Ohm @ 220mA, 10V |
| Power Dissipation (Max) | 300mW (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | SOT-23-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 50 V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 10 V |
|
