| Part number: | Y1365V0319BA9R |
| Description: | SMN 10K/2K2/2K2/10K TCR2 B A S T |
| Manufacturer | VPG Foil Resistors |
| Encapsulation | Strip |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "VPG Foil Resistors" |
| Resistance (Ohms) | 2.2k, 10k |
| Tolerance | ±0.1% |
| Power Per Element | 100mW |
| Circuit Type | Isolated |
| Number of Pins | 8 |

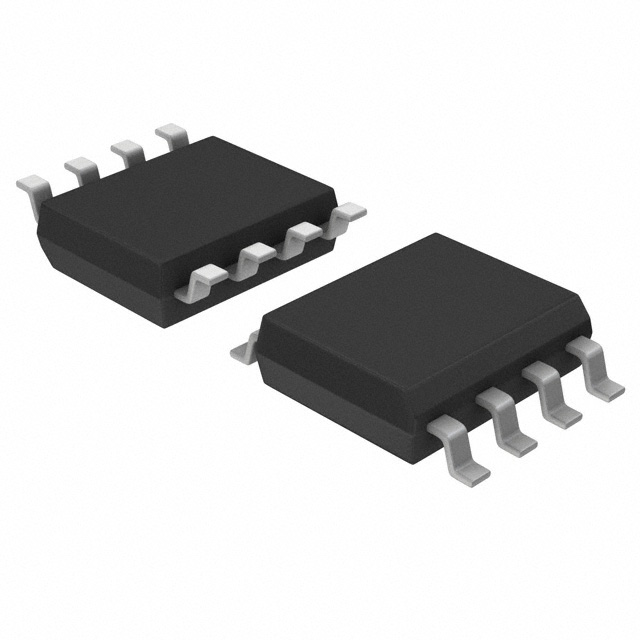

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Temperature Coefficient | ±2ppm/°C |
| Size / Dimension | 0.197" L x 0.157" W (5.00mm x 3.99mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Height - Seated (Max) | 0.073" (1.86mm) |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±0.5ppm/°C |
| Number of Resistors | 4 |
|
