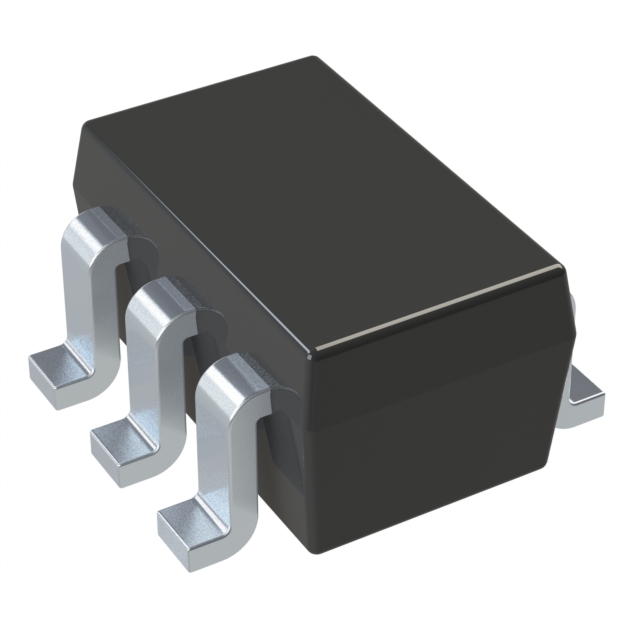

| Part number: | DMN66D0LDW-7 |
| Description: | MOSFET 2N-CH 60V 0.115A SOT363 |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 250mW (Ta) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 115mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 23pF @ 25V |
| Rds On (Max) @ Id, Vgs | 6Ohm @ 115mA, 5V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | SOT-363 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
|
