| Part number: | DMC3026LSD-13 |
| Description: | MOSFET N/P-CH 30V 8.2A/8A 8SO |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |

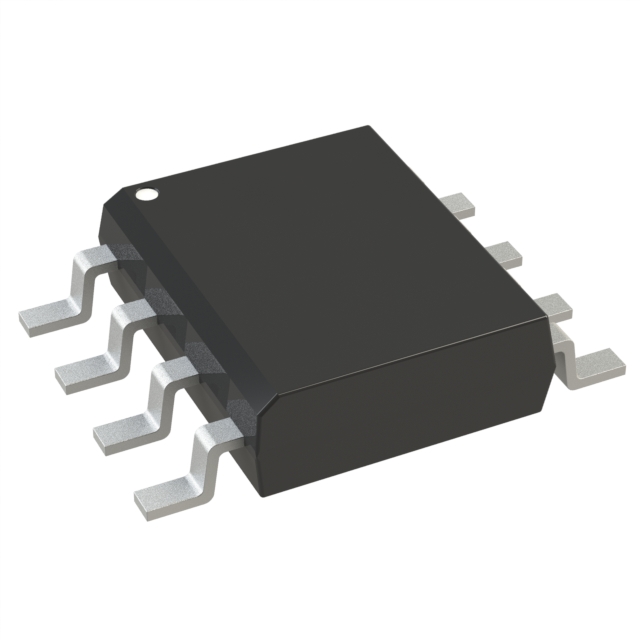

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel Complementary |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.6W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 8.2A (Ta), 8A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 641pF @ 15V, 1241pF @ 15V |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 6A, 10V, 28mOhm @ 6A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 4.5V, 10.9nC @ 4.5V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 8-SO |
| Grade | Automotive |
| Qualification | AEC-Q101 |
|
